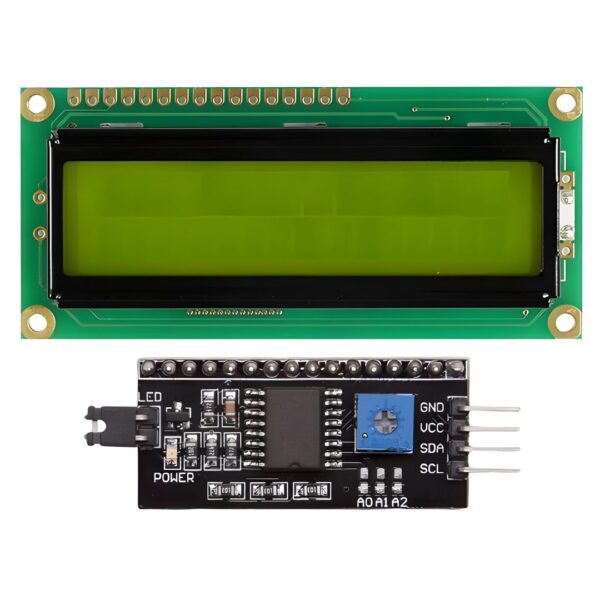

16×2 LCD Display (Green Backlight) with I2C Interface

16×2 LCD Display (Green Backlight) with I2C Interface

Original price was: ₹200.00.Current price is: ₹169.00. GST

The 16×2 LCD Display Green with I2C Module is a user-friendly display module that shows 16 characters × 2 lines and communicates using only two I2C pins. It is ideal for use with Arduino Uno R3, Arduino Nano, and ESP32 Development Board.

Category: Tags: , , ,

The 16×2 LCD Display with I2C Interface combines a standard green backlight LCD with an I2C backpack module (PCF8574), allowing simple communication using only SDA and SCL pins.

It can display 32 characters (16 per line) and is based on the HD44780 controller, ensuring compatibility with most microcontroller platforms. The onboard I2C module reduces wiring complexity and saves valuable GPIO pins.

The display also includes a contrast adjustment potentiometer and supports easy integration using available libraries, making it perfect for beginners and advanced users alike.

Key Features

  • Displays 16 characters × 2 lines
  • Green backlight with dark characters
  • Built-in I2C interface (PCF8574)
  • Uses only 2 pins (SDA, SCL)
  • Adjustable contrast via onboard potentiometer
  • Compatible with Arduino, ESP32, ESP8266, and more

Technical Specifications

Parameter Value
Operating Voltage 5V
Display Type Alphanumeric LCD
Characters 16 × 2
Controller HD44780
Interface I2C
I2C Address 0x27 / 0x3F
Backlight Green

Pin Configuration

Pin Description
VCC Power Supply (5V)
GND Ground
SDA I2C Data
SCL I2C Clock

What’s in the Box

  • 1 × 16×2 LCD Display (Green) with I2C Module
Weight 0.035 kg
Dimensions 8.0 × 3.6 × 1.8 cm
