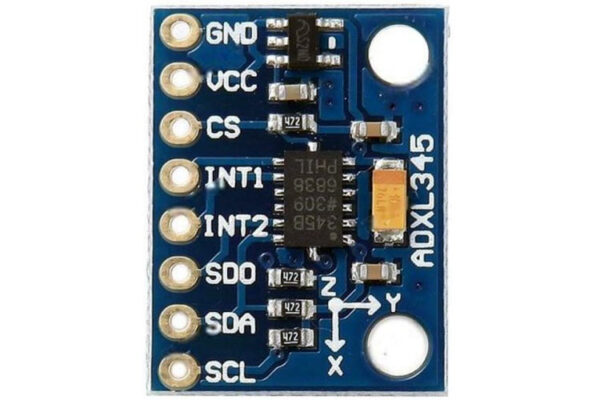

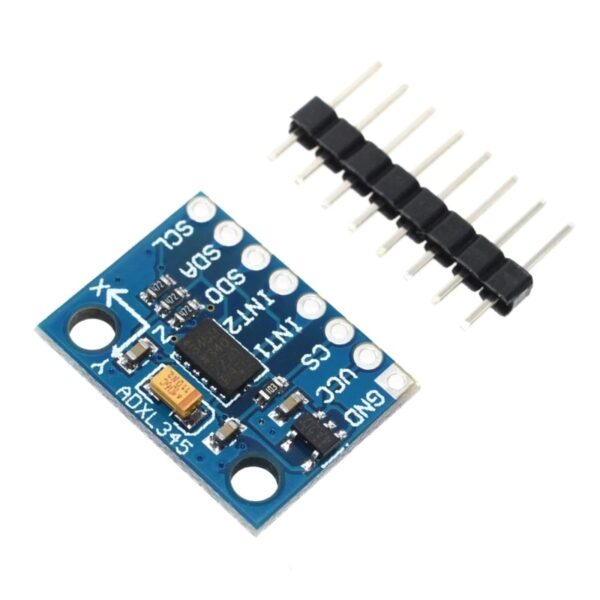

The ADXL345 Accelerometer Module is a high-resolution digital sensor used for motion, tilt, vibration, and acceleration detection in embedded and IoT projects.
The ADXL345 is a 3-axis accelerometer sensor capable of measuring acceleration in the X, Y, and Z axes. It communicates using I2C or SPI protocol, making it compatible with microcontrollers like Arduino Uno R3 and ESP32 Development Board.
It is widely used in:
Motion detection
Tilt sensing
Fall detection
Vibration monitoring
Robotics and drones
The sensor provides high sensitivity and low power consumption, making it ideal for portable applications.
Key Features
Measures acceleration in 3 axes (X, Y, Z)
Supports I2C and SPI communication
High-resolution digital output
Low power consumption
Built-in motion and tap detection
Compact and lightweight design
Technical Specifications
Parameter
Value
Sensor Type
3-Axis Accelerometer
Operating Voltage
3.3V – 5V (module dependent)
Communication
I2C / SPI
Measurement Range
±2g / ±4g / ±8g / ±16g
Resolution
13-bit
Pin Configuration
Pin
Description
VCC
Power Supply
GND
Ground
SDA
I2C Data
SCL
I2C Clock
CS
SPI Chip Select
SDO
Address Select / SPI Data
What’s in the Box
1 × ADXL345 Accelerometer Module
Ideal For
Tilt and motion sensing
Fall detection systems
Drone stabilization
Robotics projects
IoT and embedded systems 📡
Weight
0.002 kg
Dimensions
2.0 × 1.5 × 0.3 cm
