₹89.00Original price was: ₹89.00.₹35.00Current price is: ₹35.00. GST
Flame Sensor Module used to detect fire or flame sources using infrared light. Ideal for fire detection systems, safety devices, and microcontroller-based projects.

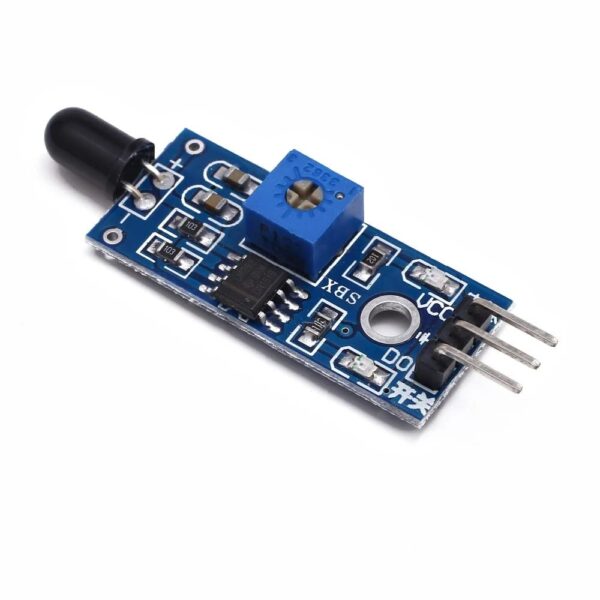

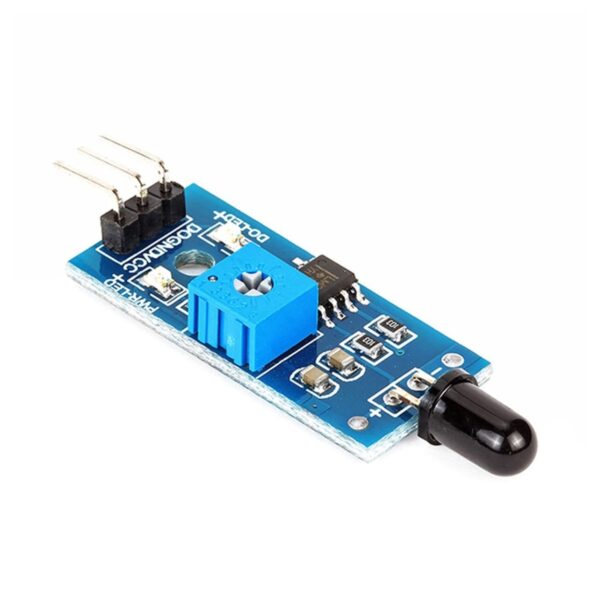

The Flame Sensor Module is designed to detect fire or flame sources by sensing infrared light emitted from flames. It is commonly used in fire detection systems, safety alarms, and robotics projects.
This module can detect flames within a certain distance and provides both analog and digital outputs for easy integration with microcontrollers such as Arduino, ESP8266, and ESP32 boards.
With adjustable sensitivity and a compact design, it is suitable for DIY electronics, automation systems, and educational projects.
Key Features
Detects flame or fire sources
High sensitivity infrared receiver
Adjustable detection sensitivity
Digital and analog output
Onboard indicator LED
Easy interface with microcontrollers
Technical Specifications
Parameter
Value
Operating Voltage
3.3V – 5V
Detection Angle
~60°
Detection Distance
Up to ~100 cm (depends on flame intensity)
Output Type
Analog and Digital
Comparator IC
LM393
Interface Pins
VCC, GND, DO, AO
Pin Configuration
Pin
Description
VCC
Power Supply (3.3V–5V)
GND
Ground
DO
Digital Output
AO
Analog Output
What’s in the Box
1 × Flame Sensor Module
Weight
0.004 kg
Dimensions
3.6 × 1.6 × 0.8 cm
