₹65.00Original price was: ₹65.00.₹35.00Current price is: ₹35.00. GST

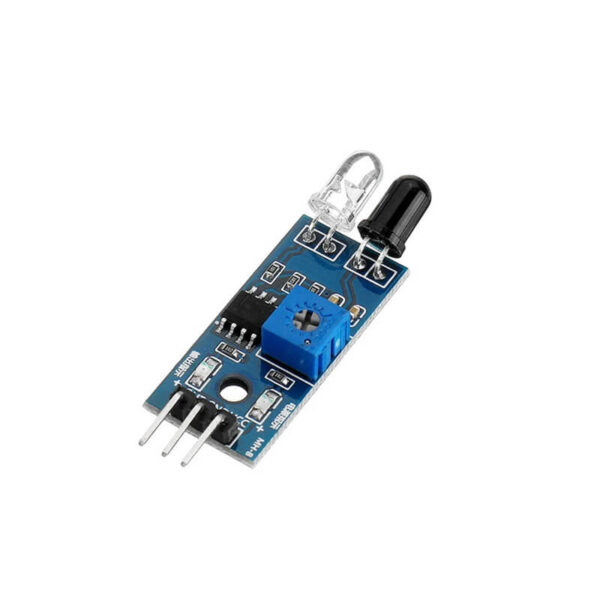

IR Obstacle Sensor is a simple infrared-based detection module used to detect nearby objects. It is widely used in robotics, line-following robots, and automation projects with boards like Arduino Uno R3, Arduino Nano, and ESP32 Development Board.
The IR Obstacle Avoidance Sensor uses an infrared transmitter and receiver to detect objects in front of the sensor. When an obstacle comes within the detection range, the IR light reflects back to the receiver, triggering the output signal.
The module includes an onboard LM393 comparator and an adjustable potentiometer to control the detection distance. It provides both digital output and status LEDs for easy monitoring.
Because of its compact size and easy interface, this sensor is commonly used in robotics, obstacle detection systems, smart vehicles, and automation projects.
Key Features
Infrared obstacle detection
Adjustable detection distance
Onboard indicator LED
Digital output signal
Compact and lightweight design
Easy interface with Arduino and other microcontrollers
Technical Specifications
Parameter
Value
Operating Voltage
3.3V – 5V
Output Type
Digital
Detection Distance
2 cm – 30 cm (adjustable)
Sensor Type
Infrared (IR)
Comparator IC
LM393
Pin Configuration
Pin
Description
VCC
Power Supply (3.3V–5V)
GND
Ground
OUT
Digital Output Signal
What’s in the Box
1 × IR Obstacle Avoidance Sensor Module
Weight
0.005 kg
Dimensions
4.5 × 1.2 × 0.8 cm
