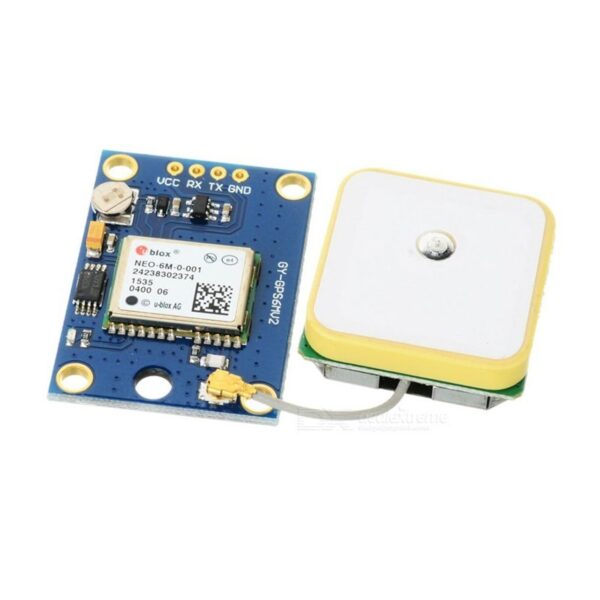

Name: NEO-6M GPS Module with EEPROM and Ceramic Antenna
SKU: 2139
Availability: InStock

NEO-6M GPS Module with EEPROM and Ceramic Antenna

GST

The NEO-6M GPS Module is a high-accuracy GPS receiver module used for obtaining latitude, longitude, altitude, speed, and UTC time in Arduino, ESP32, STM32, and IoT projects. It communicates via UART serial interface and includes a built-in ceramic antenna and backup battery.

The NEO-6M GPS Module is based on the u-blox NEO-6M GPS chipset, capable of tracking multiple satellites and providing accurate positioning data. It features an onboard EEPROM and backup battery for faster satellite acquisition after power cycles. Typical position accuracy is around 2.5 meters under open sky conditions.

It is widely used in:

Vehicle tracking systems
GPS navigation projects
Drones and UAVs
IoT location monitoring
Robotics and telemetry

Key Features

u-blox NEO-6M GPS chipset
Built-in ceramic patch antenna
UART serial communication
Backup battery for hot start
EEPROM for configuration storage
Compatible with Arduino, ESP32, STM32, and Raspberry Pi

Technical Specifications

Parameter	Value
Operating Voltage	3.3V – 5V
Interface	UART (TX/RX)
Default Baud Rate	9600 bps
Position Accuracy	~2.5 m
Update Rate	1Hz (up to 5Hz)
Channels	50
Current Consumption	35–50 mA
