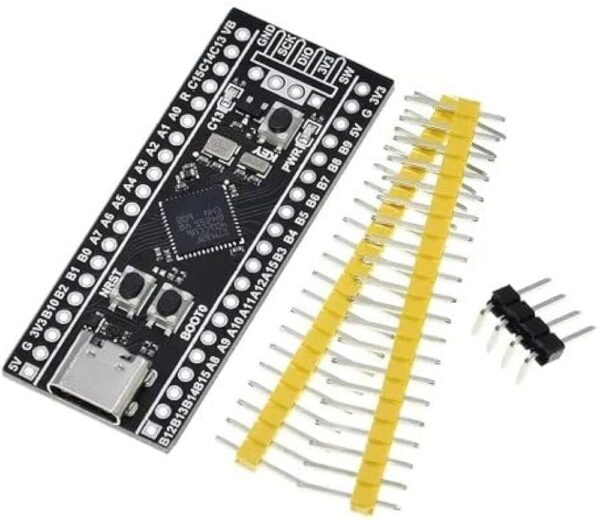

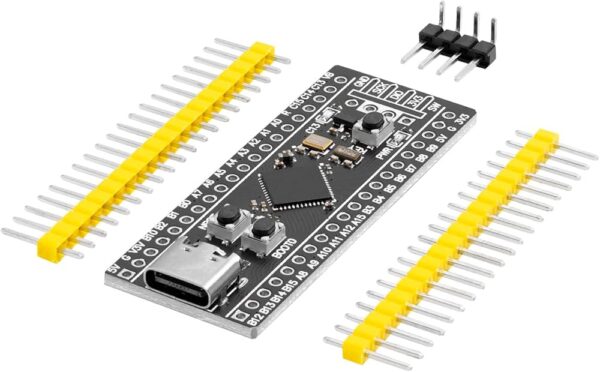

STM32 Black Pill Development Board (STM32F411CEU6)

The STM32 Black Pill is a compact and powerful development board built around the STM32F411CEU6 microcontroller, featuring an ARM Cortex-M4 core running up to 100 MHz.

It offers significantly higher performance compared to basic boards like Arduino, making it suitable for real-time processing, motor control, IoT systems, DSP applications, and advanced embedded development.

The board includes multiple GPIO pins, ADCs, timers, communication interfaces (UART, SPI, I2C), and USB support, making it highly versatile. It can be programmed using STM32CubeIDE, Arduino IDE (with support), or PlatformIO.

---

Key Features

• Based on STM32F411CEU6 (ARM Cortex-M4)
• Clock speed up to 100 MHz
• 512 KB Flash and 128 KB SRAM
• Supports USB, UART, SPI, I2C
• Compact “Black Pill” form factor
• Supports Arduino IDE, STM32CubeIDE, PlatformIO
• Low power consumption with high performance

---

Technical Specifications

---

Pin Configuration

• Multiple GPIO pins with PWM, ADC, and communication support
• Dedicated pins for UART, SPI, I2C
• USB interface pins available

What’s in the Box

• 1 × STM32 Black Pill Development Board

---

Ideal For

• Advanced embedded systems
• Real-time control applications
• IoT and automation projects
• Motor control and robotics
• DSP and signal processing projects ⚡
