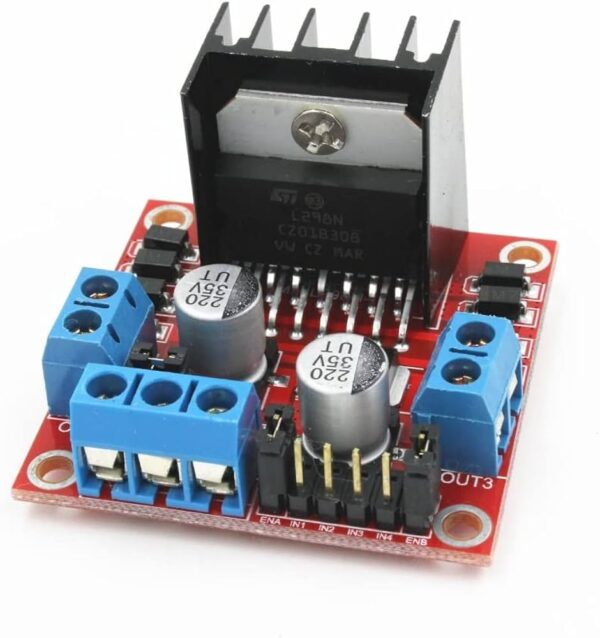

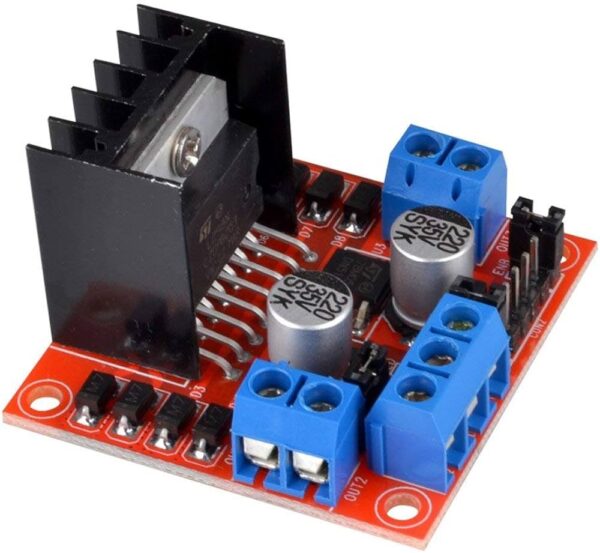

L298N Dual H-Bridge Motor Driver Module
L298N Dual H-Bridge Motor Driver Module
L298N Dual H-Bridge Motor Driver Module
  1. L298N Dual H-Bridge Motor Driver Module
  2. L298N Dual H-Bridge Motor Driver Module
  3. L298N Dual H-Bridge Motor Driver Module

L298N Dual H-Bridge Motor Driver Module

Original price was: ₹210.00.Current price is: ₹139.00. GST

The L298N Motor Driver Module is a popular motor driver module used for controlling DC motors and stepper motors with microcontrollers like Arduino Uno R3 and ESP32 Development Board.

Category: Tags: ,

The L298N Motor Driver Module is based on the L298N dual H-bridge motor driver IC, allowing independent control of:

  • Two DC motors
  • One stepper motor

It supports:

  • Forward and reverse rotation
  • Speed control using PWM
  • Direction control through digital pins

The module includes:

  • Built-in 5V regulator
  • Heat sink for cooling
  • Screw terminals for easy wiring

It is widely used in:

  • Robotics
  • RC vehicles
  • Smart cars
  • Automation systems

Key Features

  • Controls 2 DC motors simultaneously
  • Supports PWM speed control
  • Forward/reverse direction control
  • Built-in voltage regulator
  • Heat sink included
  • Easy interface with Arduino and ESP boards

Technical Specifications

Parameter Value
Driver IC L298N
Motor Voltage 5V – 35V
Logic Voltage 5V
Output Current Up to 2A (peak)
Channels 2

Pin Configuration

Pin Description
IN1–IN4 Motor control inputs
ENA Motor A speed control
ENB Motor B speed control
OUT1–OUT4 Motor outputs
12V Motor power input
5V Logic power
GND Ground

What’s in the Box

  • 1 × L298N Motor Driver Module

Ideal For

  • Robot cars
  • DC motor control
  • Automation projects
  • Stepper motor projects
  • DIY robotics ⚙️
Weight 0.030 kg
Dimensions 4.3 × 4.3 × 2.7 cm
