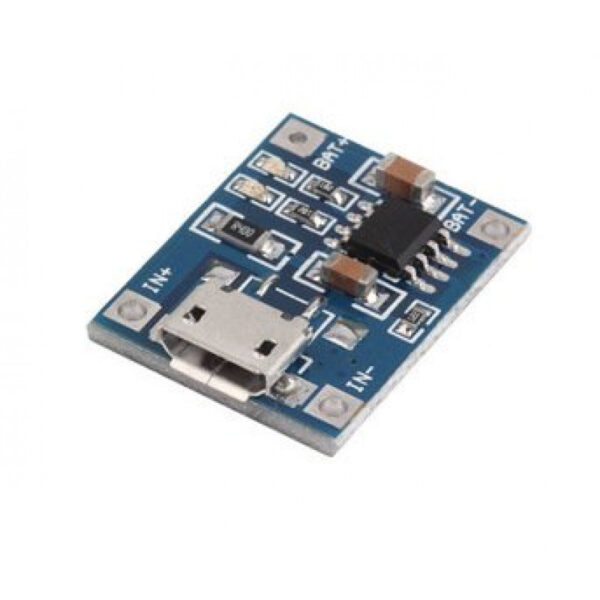

The TP4056 Type-B Charging Module is based on the TP4056 lithium battery charging IC and is used for safely charging single-cell 3.7V Li-ion/Li-Po batteries such as 18650 Li-ion Battery.
Unlike the Type-C version, this module uses a Micro USB Type-B connector, which is common in older Arduino cables and mobile chargers.
Most versions include:
Overcharge protection
Over-discharge protection
Short-circuit protection
It is widely used in DIY power banks, portable devices, robotics, and battery-powered projects.
Key Features
Micro USB Type-B input
Supports 3.7V Li-ion/Li-Po batteries
Charging current up to 1A
Charging status LEDs
Compact and lightweight design
Easy battery charging solution
Technical Specifications
Parameter
Value
Charging IC
TP4056
Input Voltage
5V DC
Charging Voltage
4.2V
Charging Current
Up to 1A
Battery Type
3.7V Li-ion / Li-Po
Input Connector
Micro USB Type-B
Pin Configuration
Pin
Description
IN+
5V Input Positive
IN−
Ground
B+
Battery Positive
B−
Battery Negative

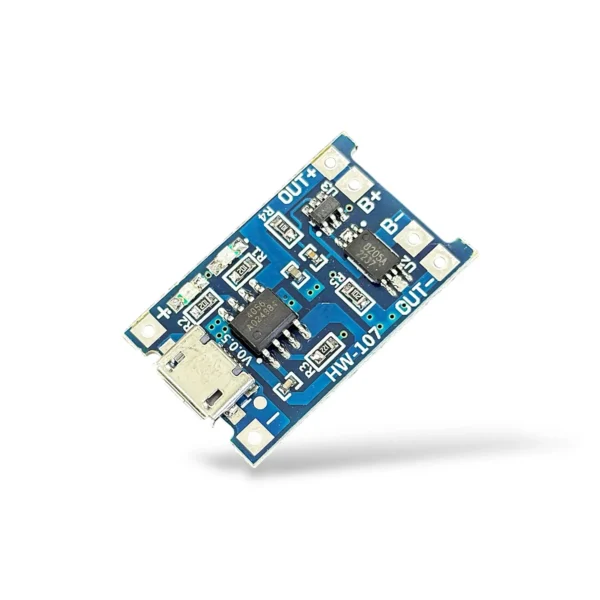

OUT+
Output Positive (protection version)
OUT−
Output Ground (protection version)
What’s in the Box
1 × TP4056 Type-B Charging Module
Ideal For
18650 battery charging
DIY power banks
Portable electronics
IoT and robotics projects
Rechargeable battery systems 🔋
Weight
0.003 kg
Dimensions
2.6 × 1.7 × 0.4 cm
