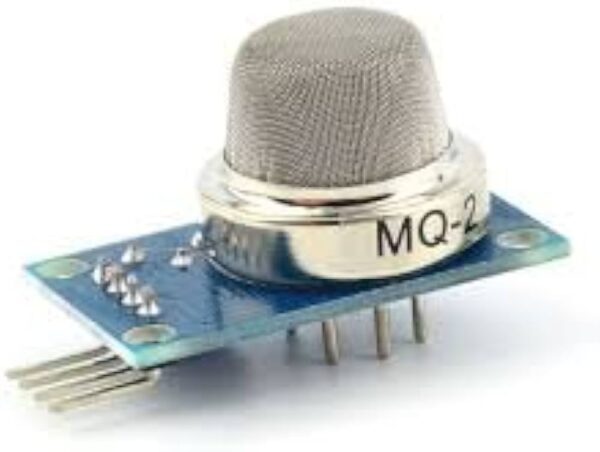

The MQ-2 Gas Sensor Module is a gas detection sensor used to detect LPG, propane, methane, hydrogen, smoke, and other combustible gases. It is widely used with Arduino Uno R3 and other microcontrollers for gas leakage monitoring.
The MQ-2 Gas Sensor Module is designed to detect the presence of combustible gases and smoke in the surrounding environment. It contains a sensitive gas-sensing element whose resistance changes when exposed to gas.
The module provides both:
Analog Output (AO) for measuring gas concentration
Digital Output (DO) for gas detection threshold indication
An onboard potentiometer allows adjustment of the detection sensitivity. It is commonly used in gas leakage alarms, fire detection systems, and safety monitoring projects.
Key Features
Detects LPG, methane, propane, hydrogen, and smoke
Analog and digital outputs
Adjustable sensitivity using onboard potentiometer
Easy interface with Arduino and ESP32
Onboard power and status LEDs
Suitable for indoor gas monitoring applications
Technical Specifications
Parameter
Value
Operating Voltage
5V DC
Current Consumption
~150mA
Output Type
Analog & Digital
Detectable Gases
LPG, Methane, Propane, Hydrogen, Smoke
Response Time
<10 seconds
Pin Configuration
Pin
Description
VCC
5V Power Supply
GND
Ground
AO
Analog Output
DO
Digital Output
What’s in the Box
1 × MQ-2 Gas Sensor Module
Ideal For
LPG leakage detection
Smoke detection projects
Gas alarm systems
Home safety monitoring
Arduino and IoT projects 🔥
Weight
0.010 kg
Dimensions
3.2 × 2.2 × 2.7 cm
