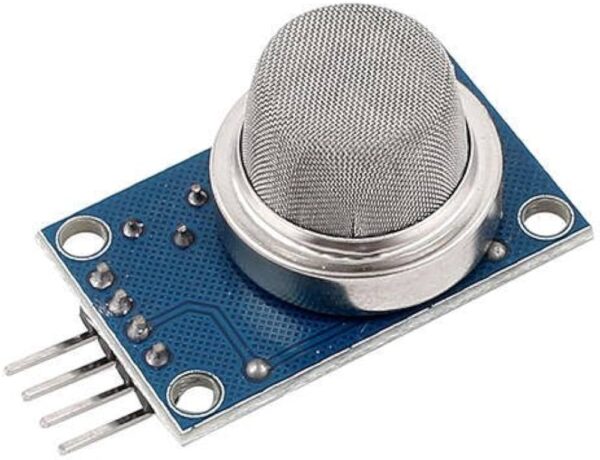

MQ-2 Gas Sensor Module

The MQ-2 Gas Sensor Module is a widely used gas detection sensor capable of sensing flammable gases and smoke. It works using a tin dioxide (SnO₂) sensing material, whose resistance changes when exposed to combustible gases.

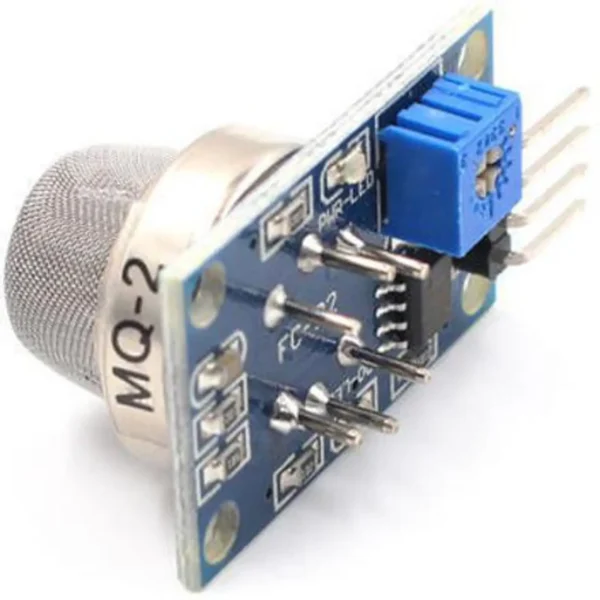

The module includes a comparator circuit (LM393) and provides both analog and digital outputs, allowing it to be easily interfaced with microcontrollers. A built-in potentiometer allows users to adjust the sensitivity level.

Due to its reliability and low cost, the MQ-2 sensor is commonly used in gas leakage alarms, safety monitoring systems, air quality monitoring, and smart home automation projects.

Key Features

• Detects LPG, methane, propane, hydrogen, and smoke

• Adjustable sensitivity using onboard potentiometer

• Both analog and digital output

• Onboard power and status LED indicators

• Easy interface with Arduino and other microcontrollers

• Fast response and high sensitivity

Technical Specifications

Pin Configuration
