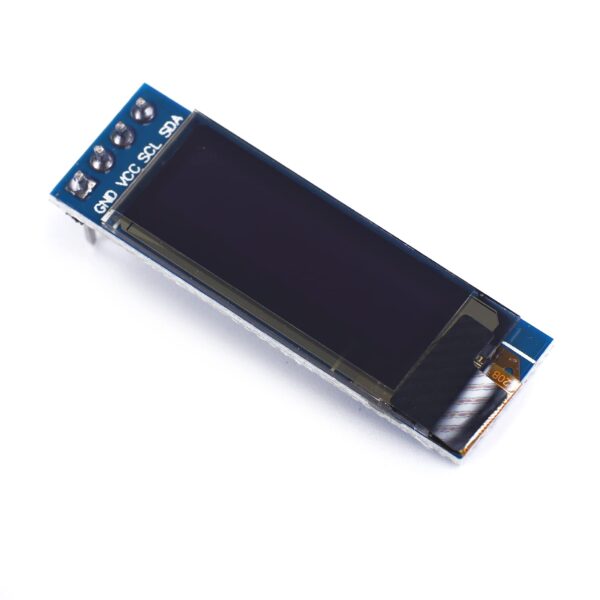

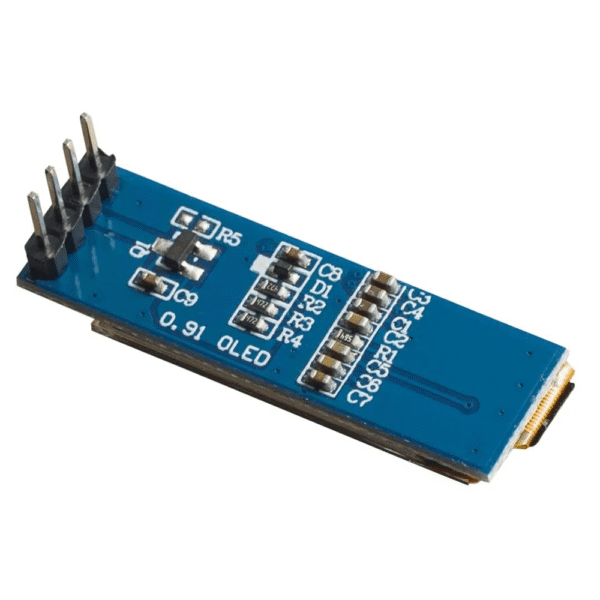

0.91 Inch OLED Display Module (I2C, 128×32)
0.91 Inch OLED Display Module (I2C, 128×32)
  1. 0.91 Inch OLED Display Module (I2C, 128×32)
  2. 0.91 Inch OLED Display Module (I2C, 128×32)

0.91 Inch OLED Display Module (I2C, 128×32)

Original price was: ₹210.00.Current price is: ₹165.00. GST

The 0.91 inch OLED Display 128×32 I2C is a compact display module used to show text and graphics with high contrast. It is commonly used with boards like Arduino Uno R3, Arduino Nano, and ESP32 Development Board.

Category: Tags: , ,

The 0.91 Inch OLED Display Module is a monochrome OLED screen with a resolution of 128×32 pixels. It uses I2C communication, which requires only two data lines, making it ideal for projects with limited GPIO pins.

Unlike LCD displays, OLED screens do not require a backlight. Each pixel emits its own light, resulting in high contrast, low power consumption, and excellent visibility even in low light conditions.

This display is based on the SSD1306 driver, making it easy to interface with microcontrollers using widely available libraries. It is perfect for displaying text, icons, sensor data, and simple graphics.

Key Features

  • Compact 0.91-inch OLED display
  • Resolution: 128×32 pixels
  • I2C interface (uses only 2 pins)
  • High contrast and wide viewing angle
  • Low power consumption
  • No backlight required
  • Compatible with Arduino, ESP32, ESP8266, and more

Technical Specifications

Parameter Value
Display Size 0.91 inch
Resolution 128 × 32 pixels
Driver IC SSD1306
Interface I2C
Operating Voltage 3.3V – 5V
Display Color White / Blue (varies by model)

Pin Configuration

Pin Description
VCC Power Supply (3.3V–5V)
GND Ground
SCL I2C Clock
SDA I2C Data

What’s in the Box

  • 1 × 0.91 Inch OLED Display Module
Weight 0.003 kg
Dimensions 3.0 × 1.2 × 0.5 cm
