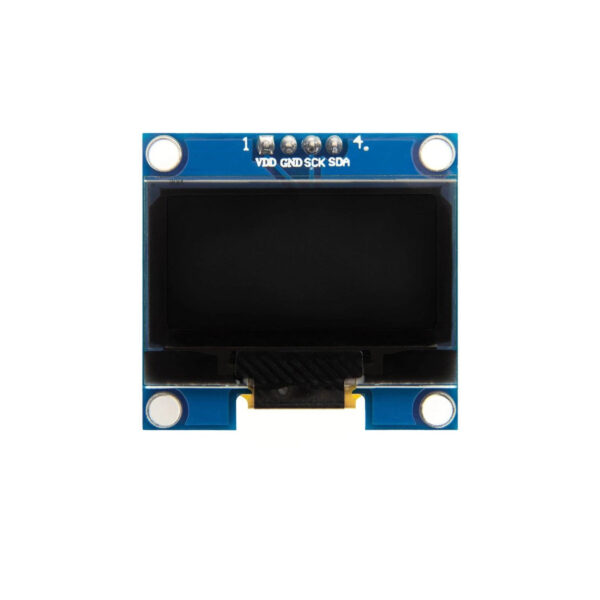

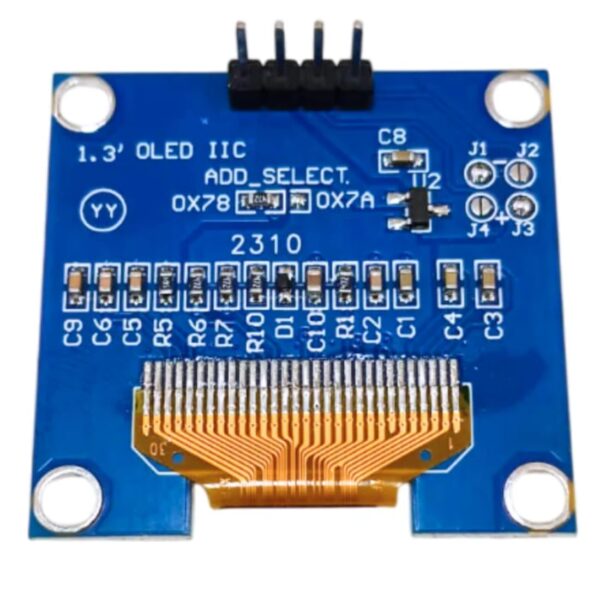

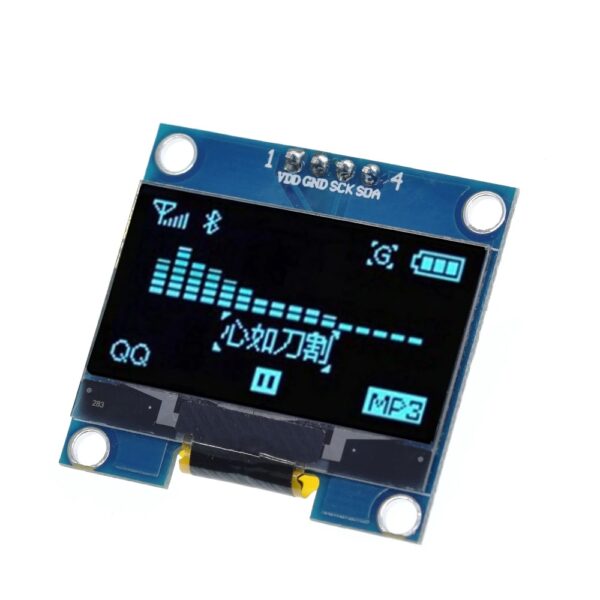

1.3 Inch OLED Display Module (I2C, 128×64)

The 1.3 Inch OLED Display Module is a monochrome OLED screen with a resolution of 128×64 pixels, providing sharp and clear visuals for both text and graphics.

It is commonly based on SSD1306 or SH1106 driver ICs and supports I2C communication, requiring only two pins (SDA and SCL) for data transfer. This makes it highly efficient for projects with limited GPIO availability.

Compared to smaller OLED displays, the 1.3-inch size offers better readability and more display space, making it ideal for dashboards and user interfaces.

Since OLED technology does not require a backlight, each pixel emits its own light, ensuring high contrast, low power consumption, and excellent visibility even in dark environments.

Key Features

• 1.3-inch OLED display
• Resolution: 128 × 64 pixels
• I2C interface (2-wire communication)
• High brightness and contrast
• Larger display area for better readability
• Low power consumption
• Compatible with Arduino, ESP32, ESP8266, and more

Technical Specifications

Pin Configuration
