Name: TP4056 Type-C Lithium Battery Charging Module
SKU: 2106
Availability: InStock

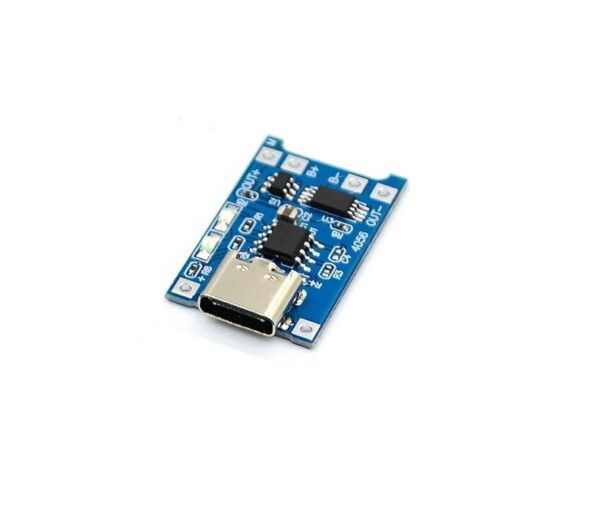

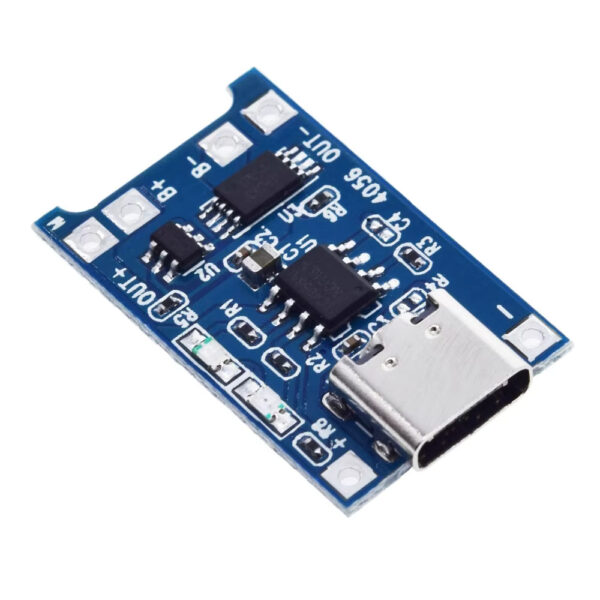

TP4056 Type-C Lithium Battery Charging Module

GST

The TP4056 Type C Charging Module is a compact charging module designed for charging 3.7V lithium-ion batteries such as 18650 Li-ion Battery using a USB Type-C input.

The TP4056 Type-C Charging Module is based on the TP4056 charging IC, designed specifically for single-cell lithium-ion and lithium-polymer batteries.

It provides constant-current / constant-voltage (CC/CV) charging with built-in charging management and status indication LEDs.

Most versions also include:

Overcharge protection
Over-discharge protection
Short-circuit protection

The module is commonly used in DIY power banks, portable electronics, robotics, and battery-powered IoT projects.

Key Features

USB Type-C input
Designed for 3.7V Li-ion / Li-Po batteries
Supports 1A charging current (typical)
Charging and full-charge indicator LEDs
Compact and easy to integrate
Built-in protection circuit (in most versions)

Technical Specifications

Parameter	Value
Charging IC	TP4056
Input Voltage	5V DC
Charging Voltage	4.2V
Charging Current	Up to 1A
Battery Type	3.7V Li-ion / Li-Po
Input Connector	USB Type-C

Pin Configuration

Pin	Description
IN+	5V Input Positive
IN−	5V Input Ground
B+	Battery Positive
B−	Battery Negative
OUT+	Output Positive (if protection version)
OUT−	Output Ground (if protection version)
